high efficiency biodegradable Sheet extruder/corn starch sheet extruder

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet
Plastic Processed:
Biodegradable starch-base material
Screw Design:
Double-screw
Automatic Grade:
automation
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
JULI
Model Number:
SHJ series sheet extruder
Voltage:
220/380V
Power(W):
200KW
Certification:
CE
color:
gray
material:
iron & steel
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden packing.
Port
Shang/Nanjing
Lead Time :
within 90 days



   1. technical data :

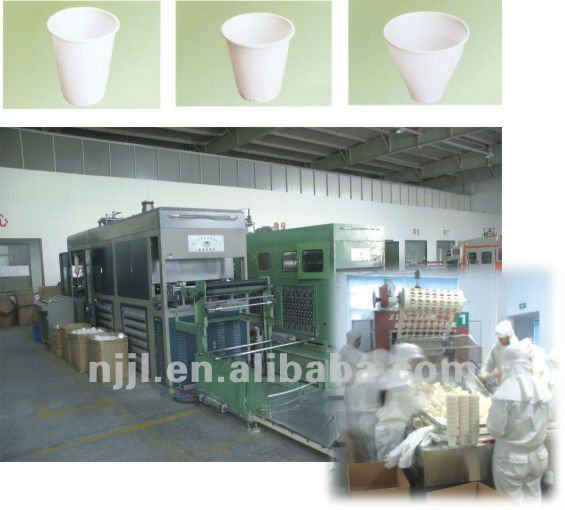

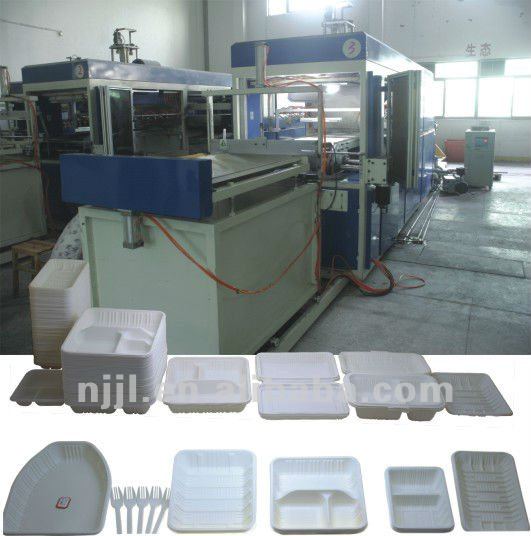

 Brand disposable biodegradable starcheco-friendly tableware&production line adopts advanced comquterized automaticcontrol system with high production efficiency. it's reliable and capable of mass production it's used for production of disposable biodegradable starch eco-friendly tableware as well as other plastic products.



      Apliphatic polyester with its superior performance on a biodegradable materials used in the area occupies play very important position. Polylactic acid (PLA) and succinic acid ester (PBS), Gather hydroxy acid ester (PHA), silane PHBV, such products have occupied the market share of the important of biodegradable materials. But biological base biodegradable materials, with it not rely on petroleum resources, The green environmental protection and renewable advantages in recent years has developed rapidly and become a ignored new strength, in the biodegradable material area.



Degradable plastics compoent material and manufacturing equipment.
1.Main material
Starch, lactone (PCL), succinic acid, butanediol esters (PBS), poly lactic acid (PLA), and ethylene/acrylate copolymer (EEA), bentonite, light/oxidation degradation materials, processing assistant, etc.
2.Manufacturing equipment

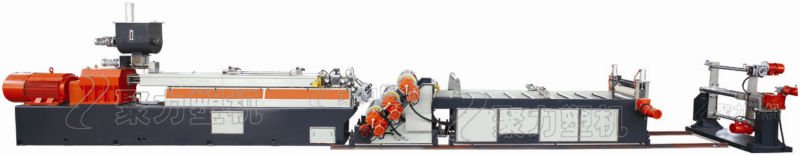

Will these materials in setting temperature and time, according to the proportion and order into special cohesive high-speed mixer, to treat and modification the material surface, to make each material mixing and compatibility between, then to plastify, and mixed by the JULI twin-screw extruder, to made of pure biological composite biodegradable materials.







Parameters
Model
SHJ75
SHJ65
SHJ50
SHJ35
Screw Diameter
72mm
63mm
51mm
35mm
Screw Center Distance
60mm
52mm
42mm
30mm
Screw Speed
0-500r/min
0-500r/min
0-500r/min
0-500r/min
Screw L/D Ratio
1/52
1/52
1/52
1/52
Production Capacity
150-300kg/h
100-250kg/h
80-180kg/h
20-100kg/h
Total Power
230kw
200kw
150kw
100kw
Melt Pump
200cc
175cc
100cc
50cc
Die Head Width
780mm
680mm
580mm
380mm
Roller Spec
423×800mm
423×700mm
423×600mm
423×400mm
Mirror Accuracy of Roll
Ra0-0.12um
Ra0-0.12um
Ra0-0.12um
Ra0-0.12um
Speed of Three-roll Wire
0-50m/min
0-50m/min
0-50m/min
0-50m/min
Product Thickness
0.25-2.2mm
0.25-2.2mm
0.25-2.2mm
0.25-2.2mm
Water Consumption (Circulating Water)
50kg/min
40kg/min
35kg/min
30kg/min
Total Weight
12T
10T
7.5T
6.5T
Total Volume
18000×18000
×2680mm
16000×17000
×2580mm
14000×16000
×2482mm
12000×15000
×2363mm
