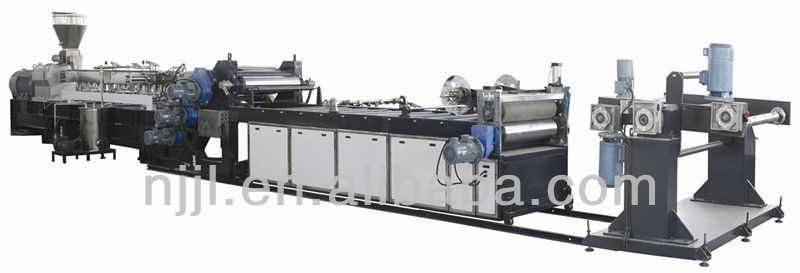

PET high quality plastic sheet extrusion line

FOB Reference Price:Get Latest Price
US $134,000-240,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet
Plastic Processed:
Biodegradable starch-base material
Screw Design:
Double-screw
Automatic Grade:
automation
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
JULI
Model Number:
SHJ series sheet extruder
Voltage:
220/380V
Power(W):
100-230KW
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
color:
gray
material:
iron & steel
SupplyAbility
SupplyAbility:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case packing
Port
Chinaport
Lead Time :
within 70 working days

Brand disposable biodegradable starcheco-friendly tableware&production line adopts advanced comquterized automaticcontrol system with high production efficiency. it's reliable and capable of mass production it's used for production of disposable biodegradable starch eco-friendly tableware as well as other plastic products.



  • Screw with special mixing and pasticization funtion
  • Coat hanger type die with two throttle design enable to regulate the sheet thickness accurately
  • ±2°C temperature control make the plasticizing process and sheet thickness control more accurate
  • Horinzontal, vertical or 45°incline type three rollers calenders may be lifted freely
  • Exact slicing machine, board length and quantity
  • Winder with big torque moter, and its speed and tension force adjustable
  • Automatic metering to set the length of product





1.Technical data:





Parameters
Model
SHJ75
SHJ65
SHJ50
SHJ35
Screw Diameter
72mm
63mm
51mm
35mm
Screw Center Distance
60mm
52mm
42mm
30mm
Screw Speed
0-500r/min
0-500r/min
0-500r/min
0-500r/min
Screw L/D Ratio
1/52
1/52
1/52
1/52
Production Capacity
150-300kg/h
100-250kg/h
80-180kg/h
20-100kg/h
Total Power
230kw
200kw
150kw
100kw
Melt Pump
200cc
175cc
100cc
50cc
Die Head Width
780mm
680mm
580mm
380mm
Roller Spec
423×800mm
423×700mm
423×600mm
423×400mm
Mirror Accuracy of Roll
Ra0-0.12um
Ra0-0.12um
Ra0-0.12um
Ra0-0.12um
Speed of Three-roll Wire
0-50m/min
0-50m/min
0-50m/min
0-50m/min
Product Thickness
0.25-2.2mm
0.25-2.2mm
0.25-2.2mm
0.25-2.2mm
Water Consumption (Circulating Water)
50kg/min
40kg/min
35kg/min
30kg/min
Total Weight
12T
10T
7.5T
6.5T
Total Volume
18000×18000
×2680mm
16000×17000
×2580mm
14000×16000
×2482mm
12000×15000
×2363mm








 2. Certificate

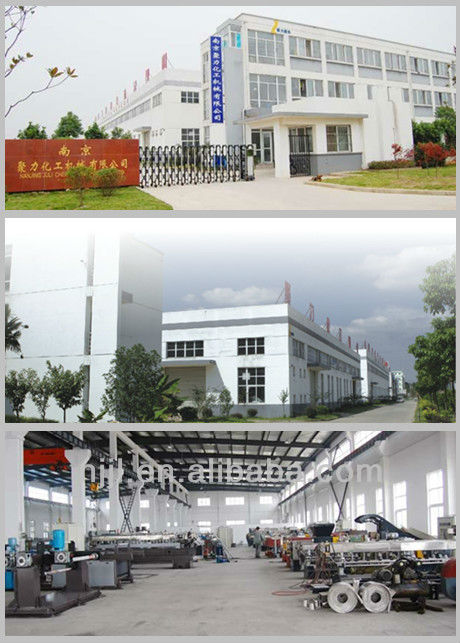

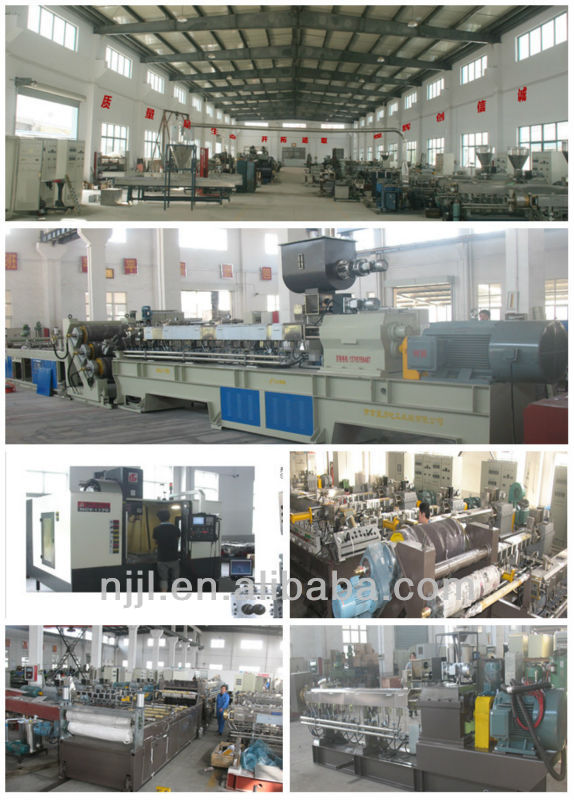

3. Manufacturer



.jpg







.jpg







4. Exhibition
